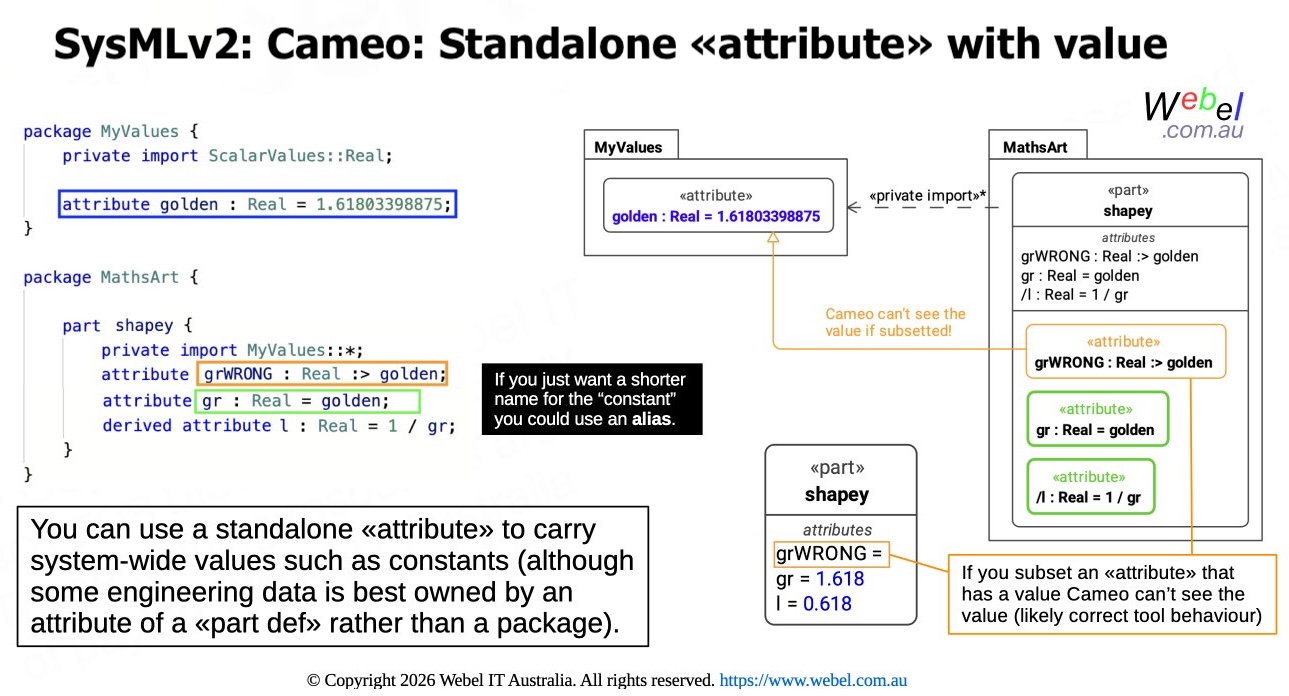

SysMLv2: Cameo: GOTCHA: An «attribute» that subsets another «attribute» that has a feature value will NOT evaluate (Cameo won't see the subsetted value). This is interpreted as correct tool behaviour (not a bug).

Icon class
icon_class
far fa-sticky-note
icon_class_computed
far fa-sticky-note
Note kind
Policy level
Specification keywords
SysMLv2 keywords
Keywords
Click on the image to view it full size

The reason this "GOTCHA" is mentioned here is that there are many cases where reuse of an attribute is achieved through subsetting (such as "standalone" attributes owned by a package).

In the case where a "standalone" attribute has a feature value it should be used directly as imported.

If you wish to have a shorter name for an imported attribute with a value you can of course just assign it to another attribute using = binding, but using an import alias is probably a cleaner approach.
